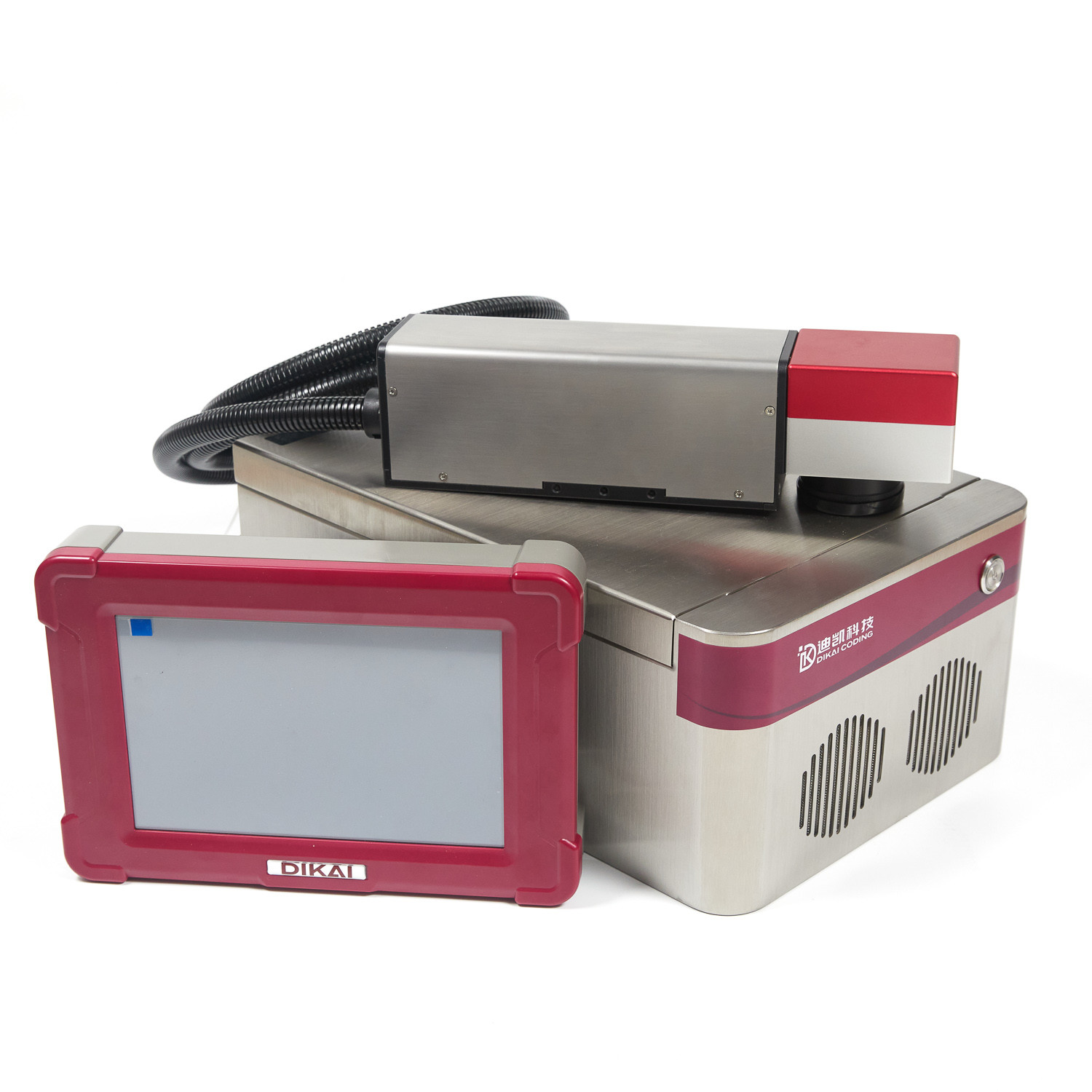

Serial Number Barcode Overprinter 20W 30W Laser Batch Printing Machine

  • 1
  • 2

Brand Name : DIKAI

Model Number : DLF

MOQ : 1

Price : USD $ 5400-6900 / set

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 15 work days

Model Name : Barcode Overprinter

Power Output : 20W 30W

Codes Support : Barcode, QR-code

Document Type : BMP/DXF/HPGL/JPEG

Graphic Element : Points, lines, arcs, rectangles, polygons, ellipses, circles

Variable Data : Serial number, text, date, time, counter, shift code

Contact Now

Date Batch Expiry Serial Number Laser Printer 20W 30W Fly Fiber Laser Printing Coding Machine

DLF200 has smaller size, lower maintenance, no consumables and provides permanent high-quality coding. Can be commonly used in food, cosmetics and other industries of flexible packaging, hard plastic (PE/PP), metal and other materials. It can print high contrast logo, to ensure the traceability of the product permanently.
At the same time in the non - metal printing coding, the identification will be cleaner than CO2 laser printer, very suitable for the identification on flexible packaging films.

High speed, high quality, high reliability
Faster coding speed, up to 700 characters/s.
The new intelligent control algorithm provides high quality marking technology
Enhanced anti-electromagnetic design ensures stable operation in harsh environment
It can run 24 hours continuously

Ease of integration
Compact independent design, can be better integrated into the existing production line
Compact size, can adapt to a variety of installation space

Abundant identification information, permanent identification
Almost unlimited font, graphics and bar code applications
Permanent identification, the most reliable anti - counterfeiting string selection

Easy to operate and low maintenance, no consumables
Innovative interface is easy to learn and easy to understand, more convenient and fast operation
Efficient fan cooling design for low maintenance and high life
Average fault-free service up to 100000 hours
No consumables required

Technical Specifications:

Model Name DLF200
Laser Type Adjustable pulse fiber laserλ=1064nm, MTBF>=100, 000 hours
Power Output 20W
Characters/S 700*
Line Speed 120m/min*
Number of Lines Limited only by character height and allowable print area
Characters Height 0.8mm to allowable area
Fonts 26 languages, multi - language support, support user - defined fonts
Codes Support Barcode, QR-code
Document Type BMP/DXF/HPGL/JPEG
Graphic Element Points, lines, arcs, rectangles, polygons, ellipses, circles
Variable Data Serial number, text, date, time, counter, shift code
Print Area 50*50mm 70*70mm 110*110mm 140*140mm 175*175mm 210*210mm
Lens 63mm, 100mm, 163mm, 210mm, 254mm, 330mm
Functions 10.1 Inch touch screen, Virtual keyboard, Iconic interface
Outside Stainless steel support structure, anodized alumina
I/O PN/PNP/24V - detector
Speed Detection Encoder or synchronizing signal
Input Signal Start, stop, interlock
Output Signal Status indication, cooling device control, machine remote control
Communication RS-232, Ethernet (10/100 Mbit), USB port
Power 90-264V AC, 47-63Hz, 800W
Cooling system Air cooling
Operation Environment `-6-45ºC, 10%-90%RH, non-condensing
IP Rating IP55; IP65(Optional)
Optional Infrared beam positioning; Infrared beam focusing; Network and remote control software (TCP/IP)

* The quantity of characters printed each second and production line speed depends on the surface material and marking content.
